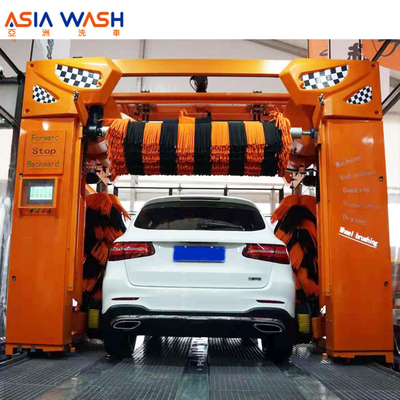

Highly Customable Asia Auto Clean Rate Car Wash Manufacturers Quick Rollover Car Wash Machine

1 Set
MOQ
$34,880.00(>=1 Sets)
Price
Highly Customable Asia Auto Clean Rate Car Wash Manufacturers Quick Rollover Car Wash Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model: V8 (441, 442, 4C2, 4C8), 8 Series, AMG GT CLASS
Year: 1996-1999, 1988-1994, 2016-2016
Place Of Origin: Jiangsu, China
Brand Name: Asia Wash
Car Fitment: Mercedes Benz, Bmw, Audi
Model Number: RVD32610
Size: 3700mm * 3000mm * 2680mm(W * H * L)
Material: Stainless Steel/Carbon Steel
Warranty: 1 Year
Output Power: >1500W
Design Style: Fast Washing Rate Highly Customable
Product Name: Roll Over Model Car Wash Machine
Max. Washing Size: 2150 Mm * 1950 Mm * 5300 Mm (W * H * L)
Operation Area: 5050mm *3300mm *14000mm (W* H * L)
Water Requirement: Pipe DN25 Flow>150L/min
Air Compressor Requirement: ≥0.7MPa,100L
Total Power: 33kW
Water Consumption: 120~150L / Car
Minimum Washing Time: 2:20
Vehicle Type: Sedan, Taxi, Jeep, SUV, Van
Applicable Models: Bmw And Others
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Asia Wash
Model Number: V8 (441, 442, 4C2, 4C8), 8 Series, AMG GT CLASS, RVD32610, Bmw and others
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 50 Set/Sets per Month
Product Description
Products Description
Model
RV320A

Standard
Foaming System* 1 unit
High Pressure Washing system*1
Waxing System,* 1
Contouring Up/down Horizontal Brush *1
Vertical Brushes * 2 ( Left 1& Right 1)
Rock Brushes*2( Left 1& Right 1)
RV3WB
Contouring Up/down Top Blower *1
Side Blower*2( Left 1 & Right 1)
Operation area
5050mm *3300mm *14000mm （W* H * L）
Dimension
3700mm * 3000mm * 2680mm（W * H * L）
3700mm * 3200mm * 1630mm（W * H * L）
Max. Washing size
2150 mm * 1950 mm * 5300 mm （W * H * L）
Rail Length
13m
Power Supply
3Phases / 380V / 50Hz
Max. power consumption
about 32kw
Power Expense
about 0.8~1.2kwh / car
Water Expense
90~150L / car
Wash speed
20~25cars / hr
Vehicle type
Normal car, Taxi, Jeep, RV, Van, SUV
More Products
About Us
Transportation&Packaging
FAQ
1.What are the different models of car washing machine available for purchase? ANS: Tunnels and Roll-overs (or gantry) are the most common. Touchless are the ones that wash with high pressure water and without any substantial contact. Roll-over and touchless are also known as in-bay automatics. These three types of car wash systems are suitable for the cleaning of sedan and RV and the other general household vehicles. For cleaning commercial vehicles such as buses or trucks, there are other dedicated car washing machines. 2.What is the delivery time? ANS: The delivery time is around 30~60 days after receiving the order confirmation. It depends on the ordered machine model and production schedule arrangement. 3.How to install? ANS: We will provide the foundation drawings according to the final order confirmation of the machine for the civil work. It will include the electric wire piping, water piping and others. The installation will be after the foundation was completed. There will be manuals and installation guidance with pictures and videos. For special orders, we will arrange an engineer to assist the installation and commissioning. 4.What is the daily maintenance procedure? ANS: We will provide a maintenance guide for daily maintenance. The site operator shall execute it accordingly. For example: Chemical supplement, cleaning the surface of photo sensors, remain good sanitation at the site, clean the water filter device (Y-type filter) etc. 5.How to solve errors and malfunctions? ANS: The error code and error description will be shown on the operation screen. The site operator shall follow the corresponding instruction in the manual. Sometimes there will be situations where the error could not be solved by following the instructions or there is no error code shown on the screen even if something apparently does not work normally. In this case, our machine is installed with an Internet gateway which allows our engineer to connect to the CPU remotely and check the program as long as there is Internet connection at the site. Our engineer will provide instant assist to you. 6.What is the warranty? ANS: There is 1 year warranty after completion of the installation. This is based on normal use. Situations including abnormal damage or not following the instructions are not protected in the warranty. For instance, damage caused by unstable power supply or natural disasters or other uncontrollable factors. 7.How much will the maintenance cost? ANS: The maintenance cost varies according to the model, and also depends on the application status, conditions and environmental factors, etc. 8.How can I get repair parts in the future? ANS: Our company has been in the industry for over 35 years. We will provide parts supply service at any time, so there is no need to worry about purchasing repair parts. 9.How long will the foundation civil work take?
ANS: We provide the civil and water and electricity construction drawings of the car washing machine for carrying out the site infrastructure construction. Generally speaking, the construction period of civil, water and electricity of the car washing machine foundation only takes about 7 days at the earliest. 10.How about the power consumption per car washing? ANS: There will be only 0.8KWh per wash. 11.How about the water consumption per car washing? ANS: With our water reclaim system, it will only cost around 30 liters of fresh water per wash.
