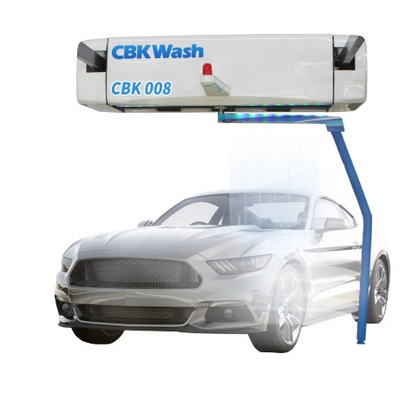

CBK 008 China Manufacturer Supplier Self Service 2021 hot dip galvanized hot sale with big price touchless car wash machine

main function

Instruction

Flush chassis and hubs system

Equipped with the function of cleaning the chassis and wheel hub, the nozzle pressure can reach 80-90 kg.

Automatic chemical mixing system

Automatically match the ratio of car wash foam

High-pressure flushing (standard/strong)

The water pressure of the water pump nozzle can reach 100 kg, and the robot arms of all equipment wash the body at a constant speed and pressure
Two modes (standard/power) can be selected..

Water wax coating

The hydrophobicity of water wax helps to speed up the drying time of the car and can add brightness to the car body.

Intelligent 3D detection system

Intelligently detect the three-dimensional size of the car, Intelligently detect the three-dimensional size of the vehicle and clean it according to the size of the vehicle.

Intelligent electronic collision avoidance

When the robotic arm touches any faulty object during the rotation, the PLC will immediately stop the equipment operation to protect the equipment from scratching the car body or other objects to avoid loss.

Parking guidance system

Guide the vehicle owner to park the vehicle at a designated location, instead of the traditional manual guidance of the car wash, and guide the vehicle to park through the prompt light to avoid danger.

Security alarm system

When the equipment fails, the lights and sounds will prompt the user at the same time, and the equipment will stop running.

Remote control

Through the Internet technology, the remote control of the car washing machine is truly realized, including remote start, close, reset, diagnosis, upgrade, operation, remote liquid level monitoring and other operations.

Standby mode

When the device is not used for a long time, the device will automatically enter the standby state, the host control system will selectively shut down some components with higher energy consumption, and wait for the device to re-enter the working state, the host control system will automatically complete the wake-up and standby service. It can reduce the energy consumption of the equipment in idle state by 85%.

Fault self-check

When the equipment fails, the efficient PLC control system will preliminarily determine the location and possibility of the failure through the detection of various sensors and parts, which is convenient for simple and quick maintenance.

leakage protection

It is used to protect the staff who may be shocked in the event of a leakage fault. It also has overload and short-circuit protection functions. It can be used to protect the overload and short-circuit of the circuit and the motor. It can also be used as an infrequent switching of the circuit under normal conditions.

A free upgrade

The program version is free to upgrade for life, so that your car washing machine will never be outdated.

Strengthen the front and rear washing

Using German Pinfl high-pressure industrial-grade water pump, international quality, to ensure 100kg/cm², real waterjet high-pressure washing, sweeping stubborn stains.

Water and electricity separation water foam separation

Lead the strong and weak currents from the crane to the distribution box in the equipment room. Separation of water and electricity is the basic prerequisite to ensure the long-term trouble-free operation of a car washing machine.

 Foam separation

The water path is completely separated from the foam liquid path, and the water path is taken separately, which can really increase the waterjet pressure to 90-100 kg. The foam is sprayed by a separate arm, which greatly reduces the waste of car wash liquid.

Direct drive system

Although the new direct drive technology has increased a lot of costs, it has greatly improved the energy saving, safety and stability of the equipment.

Bubble waterfall(Add this feature for another $550)

Large colored foam is sprayed to form a waterfall, achieving high cleaning effect

Hot dip galvanized frame double anticorrosive

The overall hot-dip galvanized frame is anti-corrosive and wear-resistant for up to 30 years, and can be simply adjusted according to the installation height.

L arm can move left and right, automatic measurement of vehicle width

The robotic arm liquefies various car washes into mist or foam, and sprays them evenly at 360 degrees to cover all parts of the car body to give full play to its decontamination effect.

Clean the rearview mirror

The spray head sprays liquid at a 45° angle, easily flushing the rearview mirror and other angular positions.

Frequency conversion energy saving system

Incorporating the most advanced frequency conversion technology, all high-power and high-power motors are driven by frequency conversion to reduce noise, reduce noise, and extend equipment life.

Oil free (reducer , bearing

Equipped with NSK bearings originating in Japan as standard, which is oil-free and fully sealed, and is maintenance-free for life.
